50798 | KEL-DPZ-B-25 Black | Cable Entry Plate

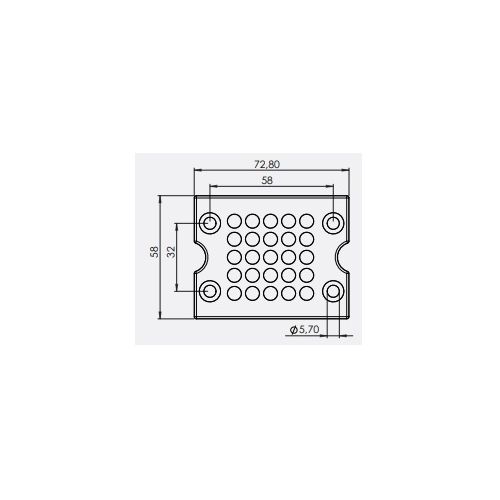

KEL DPZ-B Cable entry plates, To route and seal up to 25 cables, Dimensions: 72.80 x 58mm Cut out size: 46 x 46mm
| Complete Electronics Part No. | 50798 |
|---|---|
| Manufacturers Part No. | 50798 |
| Number of Cables: | max 25 |
| Core Colour: | Black |
| ATEX Approval: | Not ATEX Approved |
| Enclosure Shape: | Rectangular |
Description
Length: 72.8mm
Width: 58mm
Height: 10 mm
Mounting height: 10 mm
Clamping range: 25 × 3.2 - 6.5mm
No. screw holes: 4
Screw holes diameter: 5.7mm
Temperature: - 40°C to + 100°C
Material: Elastomer
Base Frame Material: Polyamide / Stainless Steel
Screw Type mounting
Flame Class: UL94-V0, self-extinguishing
Ingress Protection: IP54
UL type 12 (acc. to UL 50E)
Halogen and Silicone Free
Pack Unit: 10 Piece(s)
icotek Order Number: 50798
EAN: 4251269319211
KEL DPZ-B Cable entry plates
To route and seal up to 25 cables
Compatible with split icotek cable entry frames
For cables without preassembled connectors
For wire type: Round cable
Cut out size: 46 x 46mm
Max 25 Cables
For cables without preassembled connectors
For wire type: Round cable
Cut out size: 46 x 46mm
Max 25 Cables
Length: 72.8mm
Width: 58mm
Height: 10 mm
Mounting height: 10 mm
Clamping range: 25 × 3.2 - 6.5mm
No. screw holes: 4
Screw holes diameter: 5.7mm
Temperature: - 40°C to + 100°C
Material: Elastomer
Base Frame Material: Polyamide / Stainless Steel
Screw Type mounting
Flame Class: UL94-V0, self-extinguishing
Ingress Protection: IP54
UL type 12 (acc. to UL 50E)
Halogen and Silicone Free
Pack Unit: 10 Piece(s)
icotek Order Number: 50798
EAN: 4251269319211
