50944 | KEL-DPU 24/14 Black | Cable Entry Plate
Heavy-duty cable entry plates, To route and seal up to 14 cables, Dimensions: 147 x 58mm, max cable diameter 16.2mm, cut-out size 112 x 36mm,
| Complete Electronics Part No. | 50944 |
|---|---|
| Manufacturers Part No. | 50944 |
| Number of Cables: | max 14 |
| Core Colour: | Black |
| ATEX Approval: | Not ATEX Approved |
| Enclosure Shape: | Rectangular |
Description
Max no. of cables: 14
Max Cable Diameter 16.2mm
Clamping range:-
Packing Unit: 10
Icotek Part Number: 50944
EAN: 4251269315411
KEL-DPU 24/14 bk multi-membrane cable entry plates
To route and seal up to 14 cables
Colour: Black

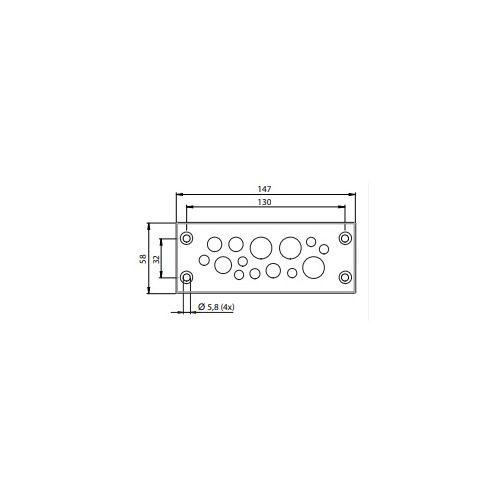

Length: 147mm
Width: 58mm
Height: 14mm
Mounting height: 14mm
Screw type mounting, Snap in
Cut out size: 112 x 36mm
Length: 147mm
Width: 58mm
Height: 14mm
Mounting height: 14mm
Screw type mounting, Snap in
Cut out size: 112 x 36mm
Max no. of cables: 14
Max Cable Diameter 16.2mm
Clamping range:-
5 × 3.2 to 6.3mm
2 x 4 to 7.5mm
3 x 5.5 to 10.5mm
1 x 8 to 12.5mm
3 x 12 to 16.2mm
Material: Elastomer
Base Frame: Polypropylene
Flame Class: UL94-V0, self-extinguishing
Temperature Rating: - 40°C to +100°C
Silicon free, Halogen free, vibration resistant
ST-B Plugs can be used for sealing pierced membranes if cables have been removed
Base Frame: Polypropylene
Flame Class: UL94-V0, self-extinguishing
Temperature Rating: - 40°C to +100°C
Silicon free, Halogen free, vibration resistant
ST-B Plugs can be used for sealing pierced membranes if cables have been removed
Certified protection IP66/IP68 (acc. to EN 60529)
IP65/IP66/IP67/IP68 when screw mounted
IP65/IP66 when snapped into the cut-out
Number of screw holes: 4 (5.8mm Diam.)
Minimum wall thickness 1.5mm
Maximum wall thickness 2mm
Minimum wall thickness 1.5mm
Maximum wall thickness 2mm
Packing Unit: 10
Icotek Part Number: 50944
EAN: 4251269315411
