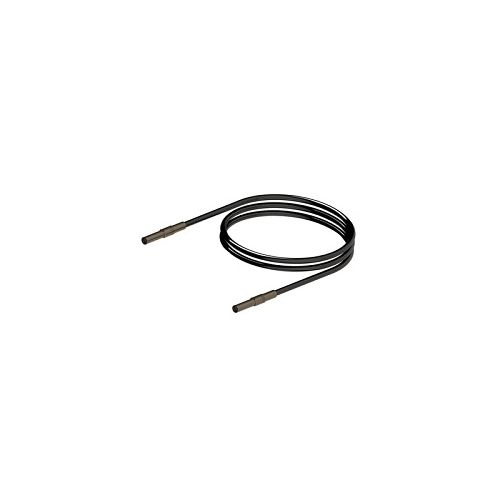

515-64-XX-XX | 51564XXXX | Patchcord

Patchcords for the 12G, 48-way microMUSA use the latest flexible 12G rated cable
More Information
Complete Electronics Part No. 51564XXXX
Manufacturers Part No. 515-64-XX-XX
Description

Electrical Specification

  • Impedance: 75 Ohm
  • Frequency Range: Up to 18GHz
  • Dielectric Withstand Voltage 1000 Veff
  • Insulation Resistance 10000 M-Ohm

Mechanical Specification

  • RoHS3 Compliant
  • Mating Cycles: 5000
  • Weight:
  • Mating Force: 10N Max
  • Uncoupling Force: 25N Max
  • Operating Temperature: -30 to +70°C
  • IP Rating (Mated): IP30

Materials

  • Centre Contact: Beryllium Copper
  • Outer Contact:   Phosphor Bronze
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
