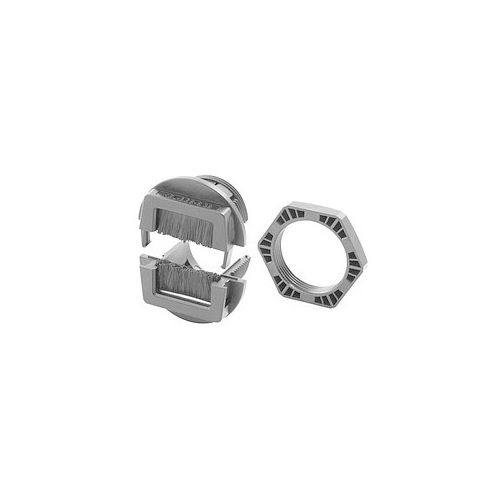

51540 | KEL-BES-S 50 black | Brush Plate
Split brush plate for cable pass-through, Frame Dimensions: 62.5mm OD, Frame Depth: 10mm, cut-out diameter: M50 (50.4mm)
| Complete Electronics Part No. | 51540 |
|---|---|
| Manufacturers Part No. | 51540 |
| Mounting: | Snap Fit Fixing |
| ATEX Approval: | Not ATEX Approved |
| Cut Out Dimensions: | M50 |
| Enclosure Shape: | Circular |
| External Diameter | 62mm |
Description
Split brush plate for cable pass-through
Frame Dimensions: 62.5mm OD
Frame Depth: 10mm
Frame Material: Polyamide (PA)
Brush Material: Polyamide (PA)
Flame class UL94-Vo
Brush profile: sheet steel, zinc plated
Halogen Free
Silicone Free
Cut-out dimensions match standard industrial connectors
Brush plates mounted via screws or via expanding rivets.
Protects cables against wear
Fast and easy assembly
Pack Unit: 10
icotek part number: 51540
EAN: 4251269318306
