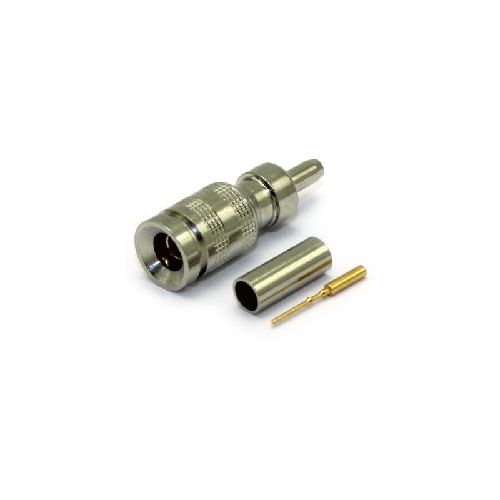

52-005-B0-AH | 52005B0AH | Crimp Plug for RG58
Screw Lock Crimp / Crimp Plug True 50 Ohm for RG58
| Complete Electronics Part No. | 52005B0AH |
|---|---|
| Manufacturers Part No. | 52-005-B0-AH |
| Type | DIN 1.0 / 2.3 |
Description
Electrical Specification
- Impedance 50 Ohm
- Frequency Range Up to 1GHz
- Dielectric Withstand Voltage 750 Veff
- Insulation Resistance 1000 M-Ohm
Mechanical Specification
- Design Standard IEC 61169-29
- RoHS3 Compliant
- Centre Contact Termination Crimp
- Outer Contact Termination Crimp
- Mating Cycles 500
- Contact Retention 10N min
- Cable Retention 200N min
- Operating Temperature -40 to +125 Deg C
- IP Rating ( Mated ) IP40
Materials
- Centre Contact Phosphor Bronze
- Outer Contact Phosphor Bronze
- Insulator PTFE
- Centre Contact Plating Gold
- Outer Contact Plating Gold
- Pack Size 1
