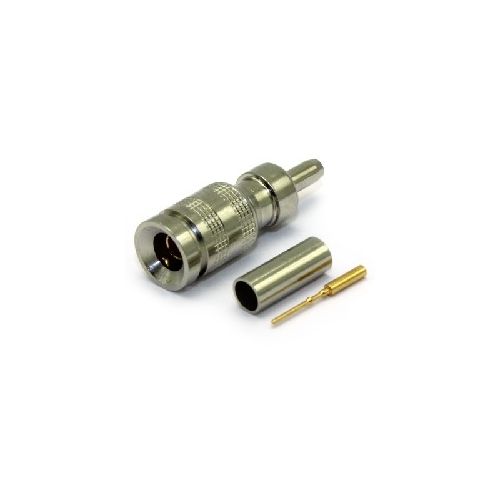

52-005-B6-BF | 52005B6BF | Crimp Plug 75ohm 3Ghz
Crimp Plug True 75 Ohm 3Ghz, Centre contact and crimp sleeve are annealed.
| Complete Electronics Part No. | 52005B6BF |
|---|---|
| Manufacturers Part No. | 52-005-B6-BF |
| Type | DIN 1.0 / 2.3 |
Description
Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 4.5GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -18.3db@ 4.5Ghz
Mechanical Specification
Design Standard IEC 61169-29
RoHS3 Compliant
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Weight 5.06g
Contact Retention 10N min
Cable Retention 220N min
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP40
Materials
Suitable for Cables (BF) RA7000, BT7000
Centre Contact Phosphor Bronze
Outer Contact Beryllium Copper
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1
