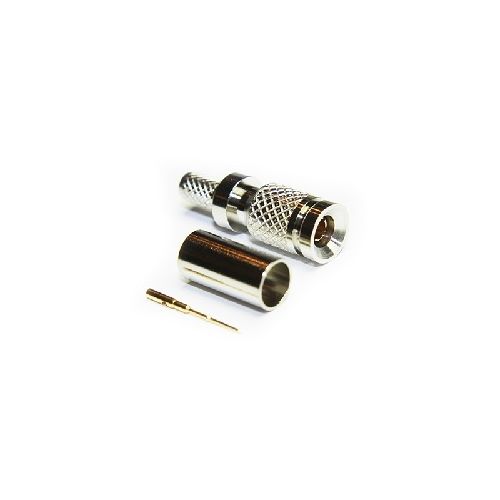

52-005-B6-EF | 52005B6EF | Crimp Plug 75ohm 12Ghz
Crimp Plug True 75 Ohm 12Ghz, Suitable for use with Belden1855A and similar cable
| Complete Electronics Part No. | 52005B6EF |
|---|---|
| Manufacturers Part No. | 52-005-B6-EF |
| Type | DIN 1.0 / 2.3 |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 12GHz
- Dielectric Withstand Voltage 1000 Veff
- Insulation Resistance 5000 M-Ohm
- Return Loss -17.53dB@12Ghz
Mechanical Specification
- Design Standard IEC 61169-29
- RoHS3 Compliant
- Centre Contact Termination Crimp
- Outer Contact Termination Crimp
- Mating Cycles 500
- Weight 5.35g
- Contact Retention 10N min
- Cable Retention 100N min
- Operating Temperature -55 to +155 Deg C
- IP Rating ( Mated ) IP40
Materials
- Suitable for Cables (EF) Belden 1855A
- Centre Contact Phosphor Bronze
- Outer Contact Phosphor Bronze
- Insulator PTFE
- Centre Contact Plating Gold
- Outer Contact Plating Gold
- Pack Size 1
