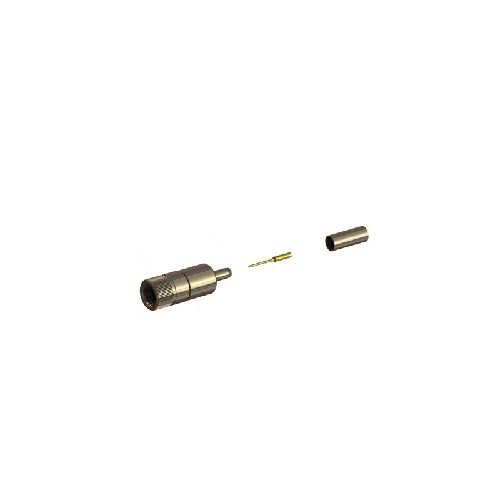

52-005A-B66-FJ | 52005AB66FJ | Screw Lock Crimp Plug
Screw Lock Crimp / Crimp Plug True 75 Ohm
| Complete Electronics Part No. | 52005AB66FJ |
|---|---|
| Manufacturers Part No. | 52-005A-B66-FJ |
| Type | DIN 1.0 / 2.3 |
Description
Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 12GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -16db@ 12Ghz
Mechanical Specification
Design Standard IEC 61169-29
RoHS3 Compliant
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Weight 6.03g
Contact Retention 10N min
Cable Retention 150N min
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP40
Materials
Centre Contact Phosphor Bronze
Outer Contact Phosphor Bronze
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1
