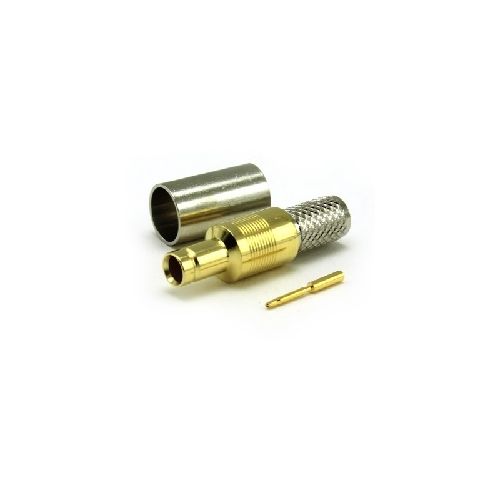

52-054-D6-FA | 52054D6FA | Crimp Jack 75ohm
Crimp Plug True 75 Ohm, straight full crimp Jack with gold plated centre and outer contact.
| Complete Electronics Part No. | 52054D6FA |
|---|---|
| Manufacturers Part No. | 52-054-D6-FA |
| Type | DIN 1.0 / 2.3 |
Description
Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 4.5GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-29
RoHS3 Compliant
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Weight
Contact Retention 10N min
Cable Retention 220N min
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP40
Materials
Suitable for Cables (FA) Belden 1855ENH, Draka 0.6/2.8AF
Centre Contact Beryllium Copper
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1
