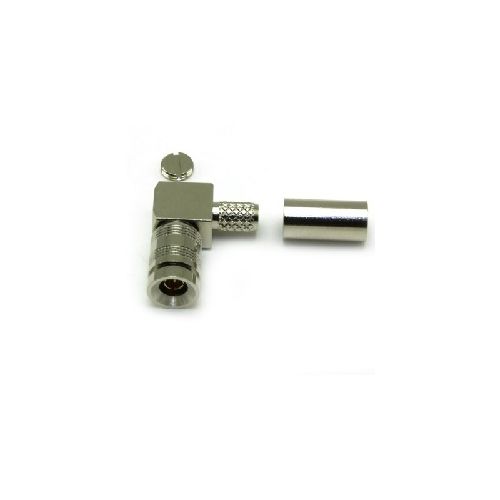

52-104-B6-AB | 52104B6AB | R/A Solder Crimp Plug
Right Angle Solder Crimp Plug, 75 Ohm, with gold plated solder centre contact.and braid is crimped
| Complete Electronics Part No. | 52104B6AB |
|---|---|
| Manufacturers Part No. | 52-104-B6-AB |
| Type | DIN 1.0 / 2.3 |
Description
Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 4.5GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-29
RoHS3 Compliant
Centre Contact Termination Solder
Outer Contact Termination Crimp
Mating Cycles 500
Weight 6.42g
Contact Retention 10N min
Cable Retention 100N min
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP40
Materials
Suitable for Cables (AB) RG179, RG187, Belden 179DT
Centre Contact Phosphor Bronze
Outer Contact Phosphor Bronze
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1
