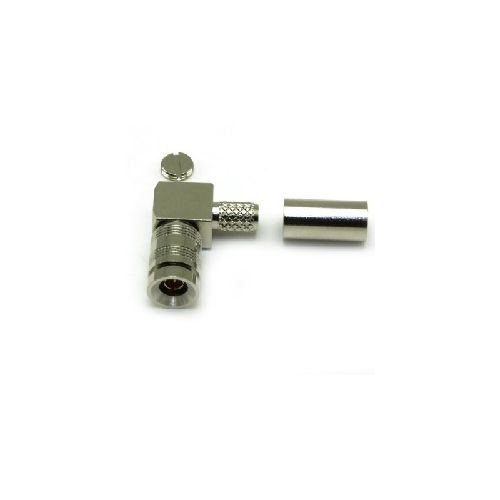

52-104-B6-FA | 52104B6FA | R/A Solder Crimp Plug
Right Angle Solder Crimp Plug, 75 Ohm, with gold plated solder centre contact.and crimped braid
| Complete Electronics Part No. | 52104B6FA |
|---|---|
| Manufacturers Part No. | 52-104-B6-FA |
| Type | DIN 1.0 / 2.3 |
Description
Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 4.5GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -17 db @ 6GHz
Mechanical Specification
Design Standard IEC 61169-29
RoHS3 Compliant
Centre Contact Termination Solder
Outer Contact Termination Crimp
Mating Cycles 500
Weight 6.98g
Contact Retention 10N min
Cable Retention 100N min
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP40
Materials
Suitable for Cables (FA) Belden 1855ENH, Draka 0.6/2.8AF
Centre Contact Phosphor Bronze
Outer Contact Phosphor Bronze
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1
