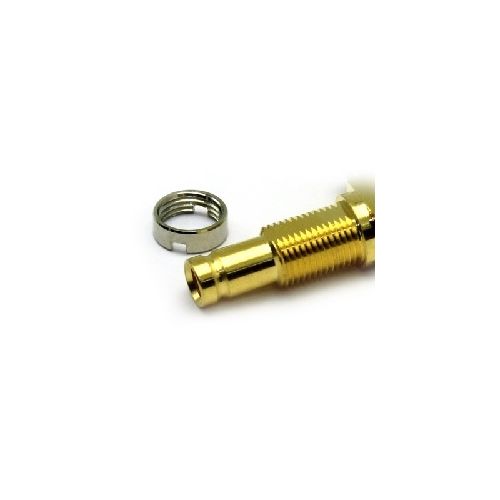

52-254-D6-BC | 52254D6BC | Rear Mount Bulkhead Crimp Jack
Rear Mount Bulkhead Crimp/Crimp Jack 75 ohm
| Complete Electronics Part No. | 52254D6BC |
|---|---|
| Manufacturers Part No. | 52-254-D6-BC |
| Type | DIN 1.0 / 2.3 |
Description
Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-29
RoHS3 Compliant
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500
Weight
Contact Retention 10N min
Cable Retention 150N min
Operating Temperature -55 to +155 Deg C
IP Rating ( Mated ) IP40
Materials
Suitable for Cables BT2003 and similar cable
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Pack Size 1
