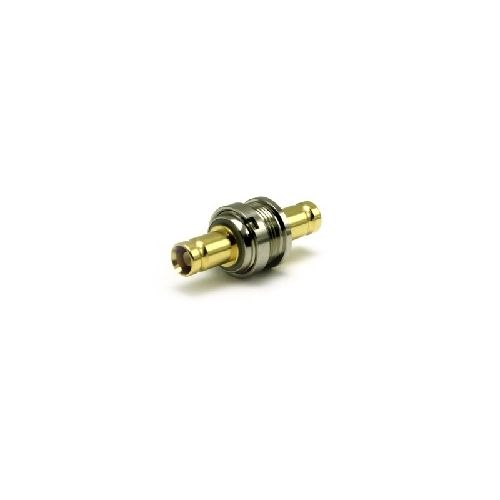

52-503-D66 | 52503D66 | Bulkhead Jack to Jack Adaptor
Insulated Metal Thread Bulkhead Jack to Jack Adaptor
| Complete Electronics Part No. | 52503D66 |
|---|---|
| Manufacturers Part No. | 52-503-D66 |
| Type | DIN 1.0 / 2.3 |
Description
Electrical Specification
Impedance 75 Ohm
Frequency Range Up to 12GHz
Dielectric Withstand Voltage 1000 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -18.3 dB@12GHz
Mechanical Specification
Design Standard IEC 61169-29
RoHS3 Compliant
Centre Contact Termination Solder
Outer Contact Termination Solder
Mating Cycles 500
Weight 1.11g
Mating Force 10N Max
Un Coupling Force 10N Max
Operating Temperature -55 to +155 Deg C
IP Rating (Mated) IP40
Materials
Centre Contact Beryllium Copper
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Gold
Outer Bulkhead Thread Plating Nickel
Bulkhead Nut Plating Nickel
Pack Size 1
