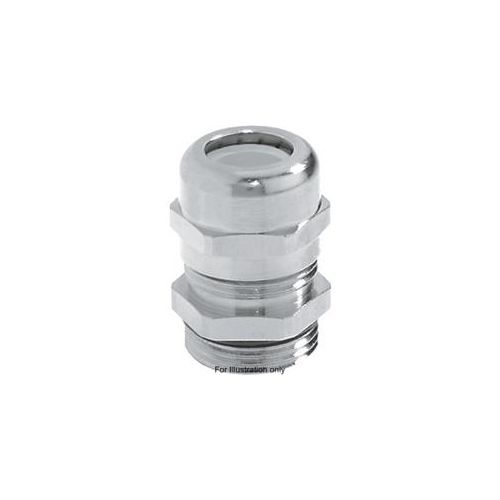

52015770 | Lapp Nickel Plated Brass Cable Gland PG7
SKINTOP® MSR Cable Gland - PG Thread Nickel Plated Brass Cable Gland - Thread Size: PG7
More Information
Complete Electronics Part No
52015770
Manufacturers Part No.
52015770
Cable Gland Size
PG7
Gland Type
Gland
Housing Construction
Metal
Cable / Gland Range
1 - 20mm
Gland Thread Length
5mm
Gland Insert Type
Reduced Size
Description
Lapp Nickel Plated Brass Cable Gland PG7
Part Number: 52015770
With Reducing Insert For Smaller Outer Diameter Cables
Optimum Strain Relief
Body Material: Nickel Plated Brass
Insert Material: Polyamide
Thread Size: PG7
Clamping Range: 2.0-5.0mm
Wrench Size: 14mm
Overall Length: 25.0mm
Thread Length: 5.0mm
Dynamic Temperature Range: -25°C to +100°C
Static Temperature Range: -40°C to +100°C
Ingress Protection: IP68
