52115780 | Lapp Nickel Plated Brass Gland For Thick Wall PG9
SKINTOP® MSR-XL Cable Gland - PG Thread Nickel Plated Brass Cable Gland For Thicker Walls - Thread Size: PG9
| Complete Electronics Part No. | 52115780 |
|---|---|
| Manufacturers Part No. | 52115780 |
| Cable Gland Size: | PG 9 |
| Gland Type: | Gland |
| Housing Construction: | Metal |
| Cable / Gland Range: | 1 - 20mm |
| Gland Thread Length: | 12mm |
| Gland Insert Type: | Reduced Size |
Description

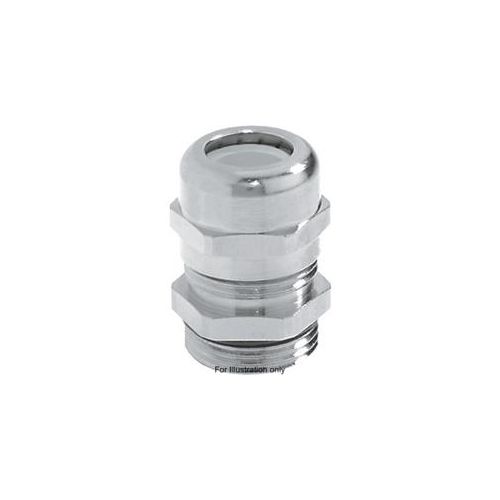

Lapp Nickel Plated Brass Gland For Thick Wall PG9
Part Number: 52115780
- With Reducing Insert For Smaller Outer Diameter Cables
- Optimum Strain Relief
- Body Material: Nickel Plated Brass
- Insert Material: Polyamide
- Thread Size: PG9
- Clamping Range: 2.0-6.0mm
- Wrench Size: 17mm
- Overall Length: 35.0mm
- Thread Length: 12.0mm
- Dynamic Temperature Range: -25°C to +100°C
- Static Temperature Range: -40°C to +100°C
- Ingress Protection: IP68
