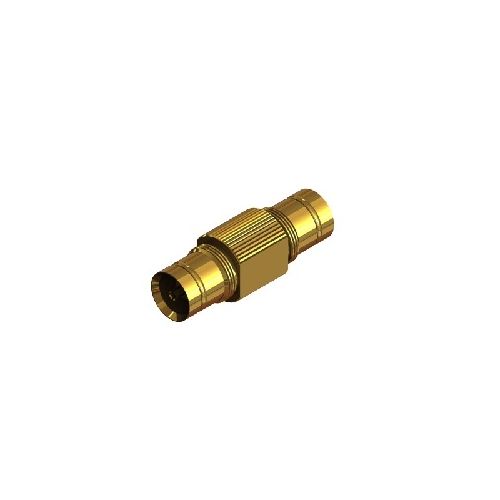

53-500-D36 | 53500D36 | 1.6/5.6 Jack/Jack Straight Adaptor
1.6/5.6 Jack to Jack Straight inline Adaptor
| Complete Electronics Part No. | 53500D36 |
|---|---|
| Manufacturers Part No. | 53-500-D36 |
| Male/Female: | Jack |
| Type | Adaptors |
| Impedance | 50 Ohm |
| Working Frequency | Up To 3 GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency: Up to 3GHz
- Dielectric W/V: 500 Veff
- Insulation: 5000 M Ohm
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: N/A
- Outer Contact Termination: N/A
- Contact Retention: N/A
- Cable Retention: N/A
- Mating Cycles: 250
- Weight: 9.63g
- Operating Temperature: -55 to +155°C
- IP Rating (Mated):
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: Gold
