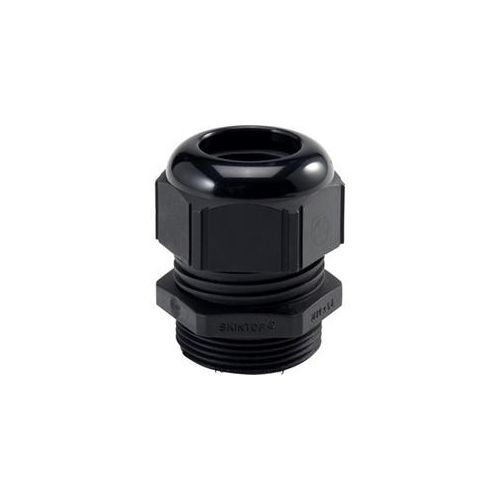

53016230 | Lapp NPT Polyamide Cable Gland 1/2" NPT (PG13.5)

SKINTOP® NPT ST Cable Gland - NPT Polyamide Cable Gland - Thread Size: 1/2" NPT (PG13.5)
More Information
Complete Electronics Part No 53016230
Manufacturers Part No. 53016230
Cable Gland Size 1/2" NPT
Gland Type Gland
Housing Construction Plastic
Cable / Gland Range 1 - 20mm
Gland Thread Length 15mm
Gland Insert Type Standard Size
Description

Lapp NPT Polyamide Cable Gland 1/2" NPT (PG13.5)

Part Number: 53016230

  • Conical NPT Thread
  • Permanent Vibration Protection
  • Body Material: Polyamide
  • Colour: Black
  • Thread Size: 1/2" NPT (PG13.5)
  • Clamping Range: 5-12mm
  • Wrench Size: 24mm
  • Overall Length: 45.0mm
  • Thread Length: 15.0mm
  • Dynamic Temperature Range: -20°C to +100°C
  • Static Temperature Range: -40°C to +100°C
  • Ingress Protection: IP68
