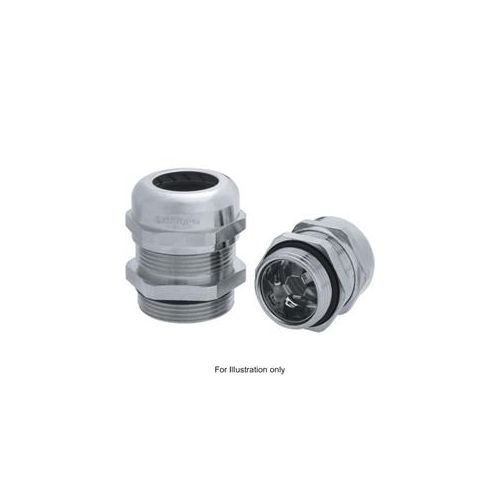

53112620 | Lapp Nickel Plated Brass Cable Gland M16 x 1.5
SKINTOP® MS-SC-M Cable Gland - Metric Nickel Plated Brass Cable Gland - Thread Size: 16 x 1.5
| Complete Electronics Part No. | 53112620 |
|---|---|
| Manufacturers Part No. | 53112620 |
| Cable Gland Size: | M16 x 1.5 |
| Gland Type: | Gland |
| Housing Construction: | Metal |
| Gland Thread Length: | 7mm |
| Gland Insert Type: | Standard Size |
Description
Lapp Nickel Plated Brass Cable Gland M16 x 1.5
Part Number: 53112620
- For EMC Compliant Earthing of the Copper Braiding
- Thread Size: 16 x 1.5
- Cable Outer Diameter: 4.5-9.0mm
- Minimum Diameter Above Braiding: 4mm
- Wrench Size: 20mm
- Thread Length: 7.0mm
- Body Material: Nickel Plated Brass
- Insert Material: Polyamide
- Dynamic Temperature Range: -25°C to +100°C
- Static Temperature Range: -40°C to +100°C
- Ingress Protection: IP68 - 10 bar
