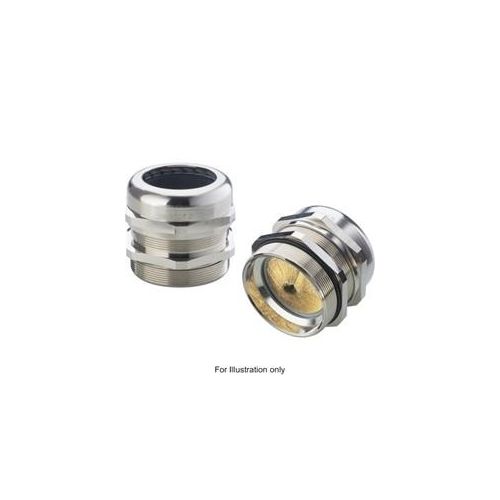

53112681 | Lapp Nickel Plated Brass Cable Gland M63 x 1.5 Plus
SKINTOP® MS-M Brush Cable Gland - Metric Nickel Plated Brass Cable Gland - Thread Size: 63 x 1.5 Plus
| Complete Electronics Part No. | 53112681 |
|---|---|
| Manufacturers Part No. | 53112681 |
| Cable Gland Size: | M63 X 1.5 |
| Gland Type: | Gland |
| Housing Construction: | Metal |
| Gland Thread Length: | 15mm |
| Gland Insert Type: | Standard Size |
Description
Lapp Nickel Plated Brass Cable Gland M63 x 1.5 Plus
Part Number: 53112681
- For EMC Compliant Earthing of the Copper Braiding
- Thread Size: 63 x 1.5 Plus
- Cable Outer Diameter: 44.0-55.0mm
- Minimum Diameter Above Braiding: 25mm
- Wrench Size: 76mm
- Thread Length: 15.0mm
- Body Material: Nickel Plated Brass
- EMC Brush Material: Brass
- Dynamic Temperature Range: -25°C to +100°C
- Static Temperature Range: -40°C to +100°C
- Ingress Protection: IP68 / IP69
