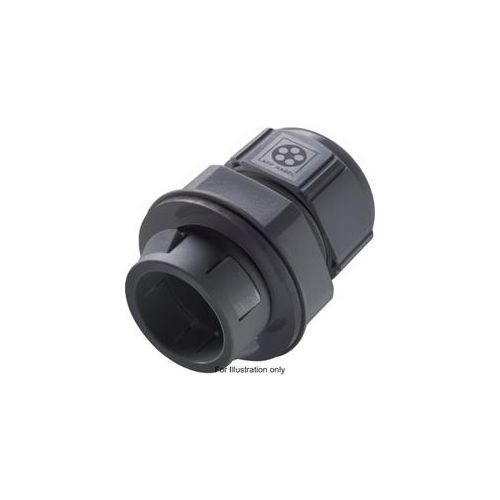

53112886 | Lapp Metric Plastic Cable Gland M 20
SKINTOP® CLICK-R 20 Black - Metric Plastic Cable Gland - Thread Size: Click 20
| Complete Electronics Part No. | 53112886 |
|---|---|
| Manufacturers Part No. | 53112886 |
| Gland Type: | Gland |
| Housing Construction: | Plastic |
| Cable / Gland Range: | 1 - 20mm |
| Gland Thread Length: | 8mm |
| Gland Insert Type: | Reduced Size |
Description
Lapp Metric Plastic Cable Gland M 20
Part Number: 53112886
- Click Fit
- Simply Click in- turn to the left - turn to the right- finished
- With Reducing Seal Insert
- Thread Size: Click 20
- To Seal Cables with Smaller Outer Diameter Cables
- Vibration Protection
- Ingress Protection: IP68 / IP69
- Fixed Temperature Range: -40°C to +100°C
- Dynamic Temperature Range: -20°C to +100°C
- Body Material: Special Polyamide
- Clamping Range: 7-13mm
- Hole Size: 20.3mm
- Body Length: 45.5mm
- Thread Length: 8mm
- Fixing Wall Thickness: 1.0-4.0mm
