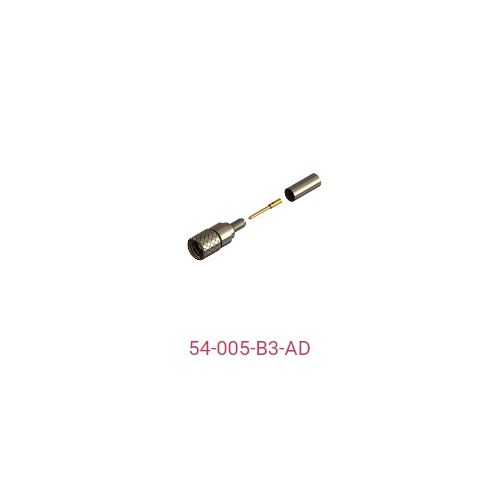

54-005-B3-AD | 54005B3AD | Straight Crimp Plug

10-32 Straight Crimp/Crimp Plug, Impedance: 50 Ohm, Frequency: 0-2 GHz, Dielectric withstand voltage: 1500Veff Suitable for Cables in Group AD

More Information
Complete Electronics Part No. 54005B3AD
Manufacturers Part No. 54-005-B3-AD
Type DIN 10 - 32
Description

Electrical Specification

  • Impedance 50 Ohm
  • Frequency Range 0-2 GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Mating Cycles 500
  • Weight 2.42g
  • Operating Temperature -55 to +155 Deg C
  • IP Rating (Mated) IP64
  • RoHS 3 Compliant

Materials

  • Centre Contact  Brass
  • Outer Contact: Brass
  • Insulator PTFE
  • Centre Contact:Gold Plated
  • Outer Contact Plating: Nickel
  • Coax Part Number: 54-005-B3-AD
  • Pack Size: 1
