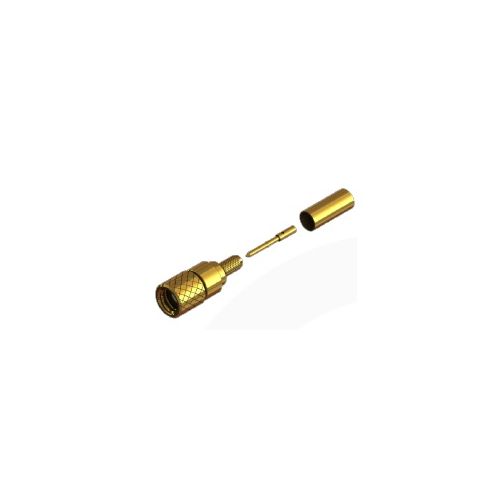

54-005-D3-AD | 54005D3AD | Straight Crimp Plug
10-32 Straight Crimp Plug, Impedance: 50 Ohm, Frequency: 0-2 GHz, Suitable for Cables: (AD) RG316, RG174, RG188, LMR100, WBC100, URM95, KX3, KX22
| Complete Electronics Part No. | 54005D3AD |
|---|---|
| Manufacturers Part No. | 54-005-D3-AD |
| Type | DIN 10 - 32 |
Description
Electrical Specification
- Impedance 50 Ohm
- Frequency Range 0-2 GHz
- Dielectric Withstand Voltage 1000 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Mating Cycles 250
- Weight 2.42g
- Operating Temperature -55 to +155 Deg C
- IP Rating (Mated) None
Materials
- Centre Contact Brass/Gold Plated
- Crimp Sleeve: Brass/Gold Plated
- Insulator PTFE
- Centre Contact Brass/Gold Plated
- Nut: Brass/Gold Plated
- Rear Body: Brass/GoldPlated
- Body: Brass/Gold Plated
- Suitable Cables: (AD) RG316, RG174, RG188, LMR100, WBC100, URM95,KX3, KX22
