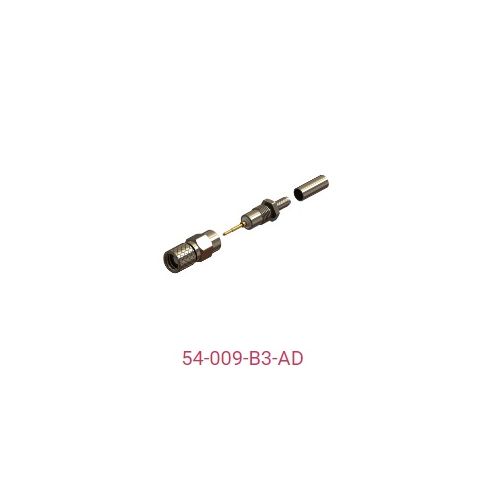

54-009-B3-AD | 54009B3AD | Straight Solder/Crimp Plug
10-32 Straight Solder/Crimp Plug, Impedance: 50 Ohm, Frequency: 0-2 GHz, Dielectric withstand voltage: 1500Veff Suitable for Cables in Group AD
| Complete Electronics Part No. | 54009B3AD |
|---|---|
| Manufacturers Part No. | 54-009-B3-AD |
| Type | DIN 10 - 32 |
Description
Electrical Specification
- Impedance 50 Ohm
- Frequency Range 0-2 GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Mating Cycles 500
- Weight 3.99g
- Operating Temperature -55 to +155 Deg C
- IP Rating (Mated) IP64
- RoHS 3 Compliant
Materials
- Centre Contact Brass
- Outer Contact: Brass
- Insulator PTFE
- Centre Contact:Gold Plated
- Outer Contact Plating: Nickel
- Coax Part Number: 54-009-B3-AD
- Pack Size: 1
