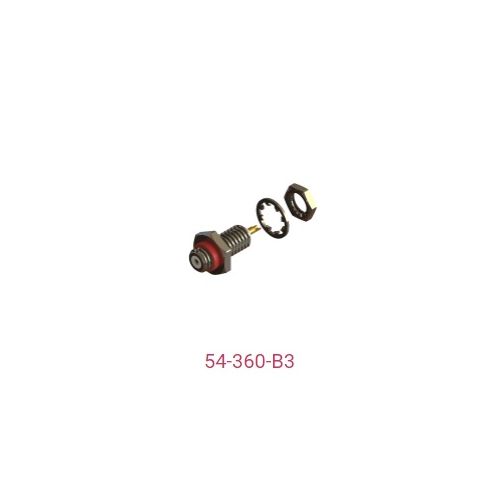

54-360-B3 | 54360B3 | Front Mount Bulkhead Jack

10-32 Front Mount bulkhead with Solder Bucket Jack With Pannel Seal making it water proof to IP65 when Mated, Impedance: 50 Ohm

More Information
Complete Electronics Part No. 54360B3
Manufacturers Part No. 54-360-B3
Type DIN 10 - 32
Description

Electrical Specification

  • Impedance 50 Ohm
  • Frequency Range 0-2 GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Mating Cycles 500
  • Weight 1.77g
  • Operating Temperature -55 to +155 Deg C
  • IP Rating (Mated) IP40
  • RoHS 3 Compliant

Materials

  • Centre Contact  Beryllium Copper
  • Outer Contact: Brass
  • Insulator PTFE
  • Centre Contact:Gold Plated
  • Outer Contact Plating: Nickel
  • Gasket: Silicone
  • Coax Part Number: 54-360-1-B3
  • Pack Size: 1
