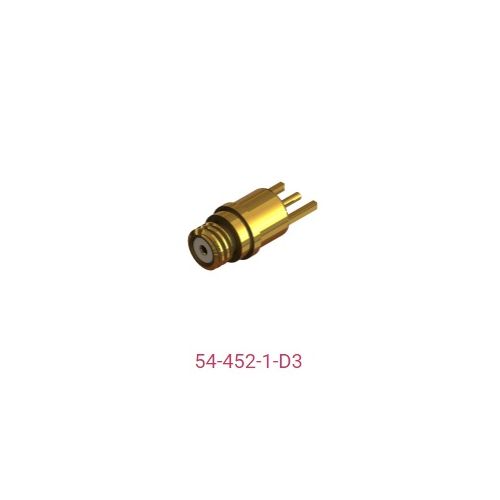

54-452-1-D3 | 544521D3 | Special Straight PCB Mount Jack
10-32 Special Straight PCB Mount Jack, Impedance: 50 Ohm, Frequency: 0-2 GHz, Dielectric withstand voltage: 1500Veff
| Complete Electronics Part No. | 544521D3 |
|---|---|
| Manufacturers Part No. | 54-452-1-D3 |
| Type | DIN 10 - 32 |
Description
Electrical Specification
- Impedance 50 Ohm
- Frequency Range 0-2 GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Mating Cycles 250
- Weight 1.93g
- Operating Temperature -55 to +155 Deg C
- IP Rating (Mated) IP64
- RoHS 3 Compliant
Materials
- Centre Contact Beryllium Copper
- Outer Contact: Brass
- Insulator PTFE
- Centre Contact:Gold Plated
- Outer Contact Plating: Gold
- Coax Part Number: 54-452-1-D3
- Pack Size: 1
