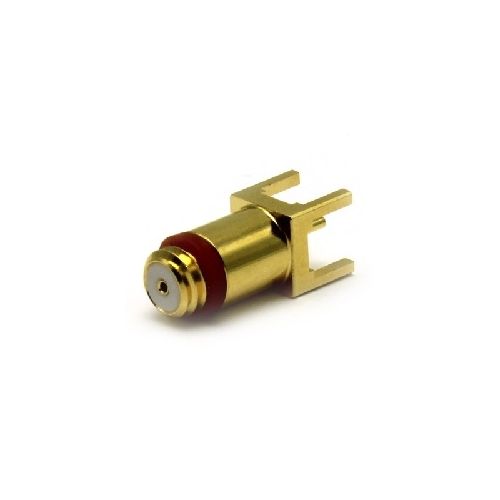

54-452-D3 | 54452D3 | Straight PCB Mount Jack
Front Mount bulkhead Solder Post Jack with Extended Contact (12mm)
| Complete Electronics Part No. | 54452D3 |
|---|---|
| Manufacturers Part No. | 54-452-D3 |
| Type | DIN 10 - 32 |
Description
Electrical Specification
- Impedance 50 Ohm
- Frequency Range Up to 12GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
- Return Loss
Mechanical Specification
- RoHS3 Compliant
- Mating Cycles 500
- Weight 2.19g
- Operating Temperature -55 to +155 Deg C
- IP Rating (Mated) IP64
Materials
- Centre Contact Beryllium Copper
- Outer Contact Brass
- Insulator PTFE
- Centre Contact Plating Gold
- Outer Contact Plating Glod
- Gasket Silicon
- Pack Size 1
