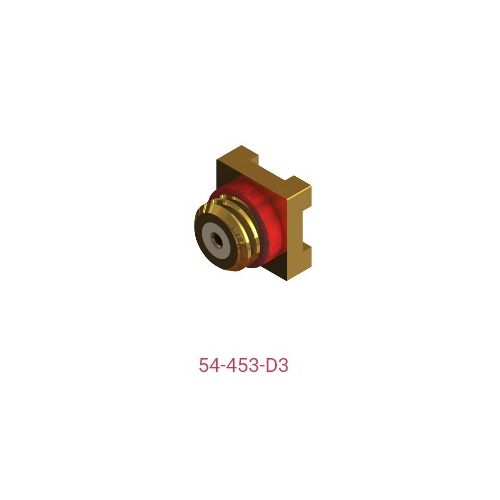

54-453-D3 | 54453D3 | SMT PCB Mount Low Profile Jack

10-32 Vertical 1/4″ Squire SMT PCB Mount Low Profile Jack with a Board Height of 5.4 mm, Impedance: 50 Ohm, Frequency: 0-2 GHz, Dielectric WV: 1500Veff

More Information
Complete Electronics Part No. 54453D3
Manufacturers Part No. 54-453-D3
Type DIN 10 - 32
Description

Electrical Specification

  • Impedance 50 Ohm
  • Frequency Range 0-2 GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • Mating Cycles 250
  • Weight 0.78g
  • Operating Temperature -55 to +155 Deg C
  • IP Rating (Mated) IP40
  • RoHS 3 Compliant

Materials

  • Centre Contact  Beryllium Copper
  • Outer Contact: Brass
  • Insulator PTFE
  • Gasket: Silicone
  • Centre Contact:Gold Plated
  • Outer Contact Plating: Gold
  • Coax Part Number: 54-453-D3
  • Pack Size: 1
