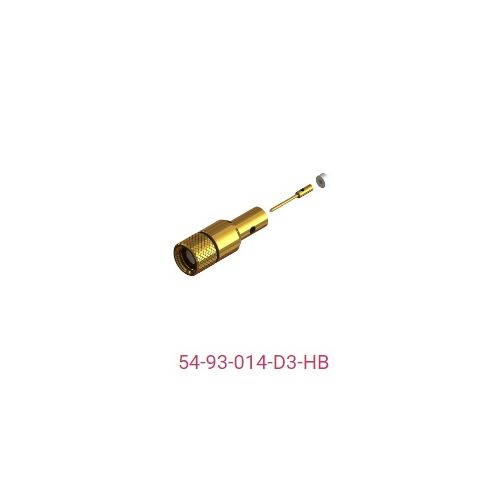

54-93-014-D3-HB| 5493014D3HB | Straight Solder Plug
635-32 (93 Ohm MICRODOT) Straight Solder Plug, Impedance: 93 Ohm, Frequency: 0-2 GHz, Dielectric withstand voltage: 1500Veff, Suitable for Cables in Group HB
| Complete Electronics Part No. | 5493014D3HB |
|---|---|
| Manufacturers Part No. | 54-93-014-D3-HB |
| Type | DIN 10 - 32 |
Description
Electrical Specification
- Impedance 93 Ohm
- Frequency Range 0-2 GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Mating Cycles 500
- Weight 5.51g
- Operating Temperature -55 to +155 Deg C
- IP Rating (Mated) IP64
- RoHS 3 Compliant
Materials
- Centre Contact Brass
- Outer Contact: Brass
- Insulator PTFE
- Centre Contact:Gold Plated
- Outer Contact Plating: Gold
- Coax Part Number: 54-93-014-D3-HB
- Pack Size: 1
