54162 | KEL-U 16/2 black | icotek Cable Entry Frame
Split cable entry system, For routing cables with connectors ,Number of Grommets: 2 large, Flat Rubber Gasket included
| Complete Electronics Part No. | 54162 |
|---|---|
| Manufacturers Part No. | 54162 |
| Number of Cables: | max 2 |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL U |
Description
Split cable entry system
For routing cables with connectors
Number of Grommets: 2 KT Large
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C (static)

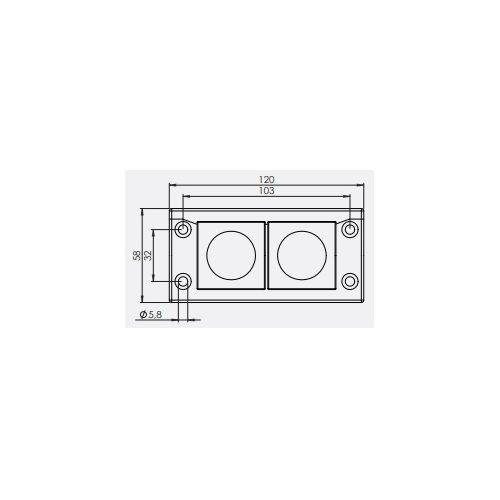

Length: 120mm
Width: 58
Height: 17mm
Cut out size: 86 x 36mm
Max No. cables: 2
Width: 58
Height: 17mm
Cut out size: 86 x 36mm
Max No. cables: 2
Max Cable Diameter:35mm
Halogen-free and silicone-free
High stability and vibration resistant
Strain relief according to EN 62444
Snap-in with KEL-SNAP
Packing Unit: 10
Icotek Order Number: 54162
EAN: 4251269315589
