54244 | KEL-U 24/4 black | icotek Cable Entry Frame
Split cable entry system, For routing cables with connectors ,Number of Grommets: 2 Small + 2 Large, Flat Rubber Gasket included
| Complete Electronics Part No. | 54244 |
|---|---|
| Manufacturers Part No. | 54244 |
| Number of Cables: | max 6 |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL U |
Description
Split cable entry system
For routing cables with connectors
Number of Grommets: 2 x KT Small + 2 x KT Large
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C (static)
Snap in fitting

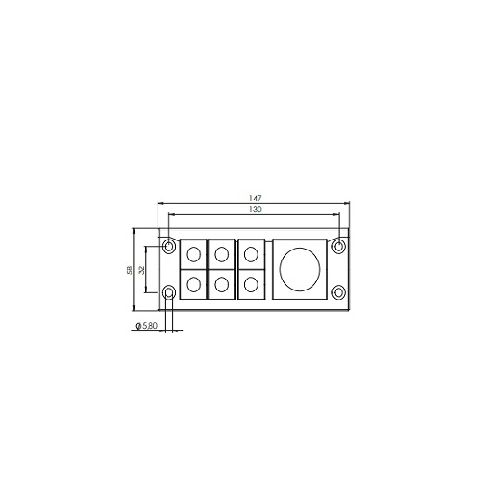

Length: 147mm
Width: 58
Height: 17mm
Cut out size: 112 x 36mm
Max No. cables: 6
Width: 58
Height: 17mm
Cut out size: 112 x 36mm
Max No. cables: 6
Halogen-free and silicone-free
High stability and vibration resistant
Strain relief according to EN 62444
Packing Unit: 10
Icotek Order Number: 54244
EAN: 4251269315749
