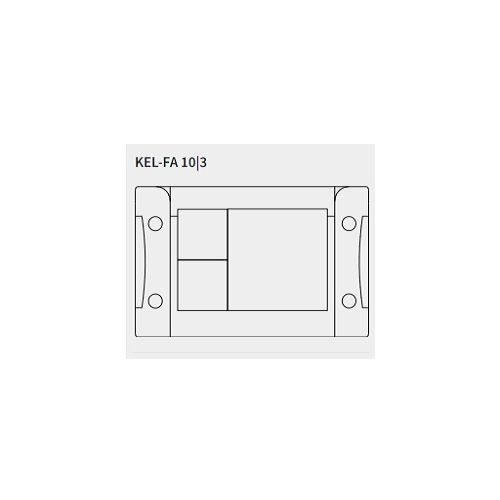

55212| KEL-FA 10-3 | icotek Split Cable Entry Frame
Split Cable Entry System, For Routing Cables with Connectors, tool-free assembly, Max Number of cables: 9 Iutilising KT series grommets
| Complete Electronics Part No. | 55212 |
|---|---|
| Manufacturers Part No. | 55212 |
| Number of Cables: | max 9 |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL-FA |
Description
KEL-FA 10-3
For Routing Cables with Connectors
- Number of Grommets: 2 x KT Small, 1 x KT Large
- Max number of cables: 9
- Cut Out Size:65 x 35mm
- Max Cable Diameter: 35mm
- Strain relief according to EN 62444
- Quick assembly without tools
- Material: Polyamide (PA)
- Flame Class: UL94-V0, self-extinguishing
- IP Rating: IP54
- Halogen-free and silicone-free
- Length: 100mm
- Width: 62mm
- Height: 22mm
- Temperature Rating: - 40°C to + 140°C (static)
- Standard Screws
- Icotek Order Number: 55212
- Pack Unit: 10
