55216| KEL-FA 10-6 | icotek Split Cable Entry Frame
Split Cable Entry System, For Routing Cables with Connectors, tool-free assembly, Max Number of cables: 24 Iutilising KT series grommets
| Complete Electronics Part No. | 55216 |
|---|---|
| Manufacturers Part No. | 55216 |
| Number of Cables: | max 24 |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL-FA |
Description

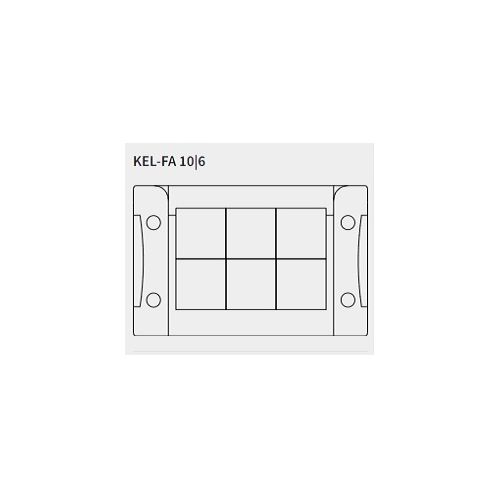

KEL-FA 10-6
For Routing Cables with Connectors
- Number of Grommets: 6 x KT Small
- Max number of cables: 24
- Cut Out Size:65 x 35mm
- Max Cable Diameter: 15mm
- Strain relief according to EN 62444
- Quick assembly without tools
- Material: Polyamide (PA)
- Flame Class: UL94-V0, self-extinguishing
- IP Rating: IP54
- Halogen-free and silicone-free
- Length: 100mm
- Width: 62mm
- Height: 22mm
- Temperature Rating: - 40°C to + 140°C (static)
- Standard Screws
- Icotek Order Number: 55216
- Pack Unit: 10
