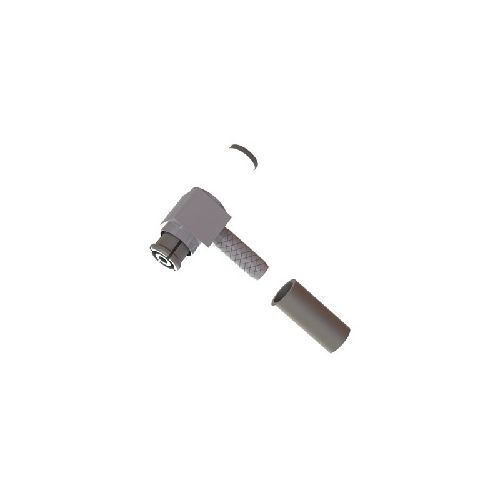

56-105-Q3-AA | 56105Q3AA | SMP R/A Solder / Crimp Plug
SMP Non Magnetic Right Angle Solder / Crimp Plug,suitable for use within non magnetic environments. For use with flexible cables in group AA.
| Complete Electronics Part No. | 56105Q3AA |
|---|---|
| Manufacturers Part No. | 56-105-Q3-AA |
| Male/Female: | Plug |
| Type | Right Angled |
| Impedance | 50 Ohm |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency: Up to 6GHz
- Dielectric W/V: 500 Veff
- Insulation: 1000 M Ohm
Mechanical Specification
- Design Standard: CECC22220
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Crimp
- Contact Retention: 10N min
- Cable Retention: 60N mim
- Mating Cycles: 500
- Weight: 1.59g
- Mating Force: 10N Max
- Un-Coupling Force: 20N Max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP 40
Materials
- Centre Contact: Brass
- Outer Contact: Phosphor Bronze
- Insulator: PTFE
- Centre Contact Plating: Silver
- Outer Contact Plating: White Bronze
