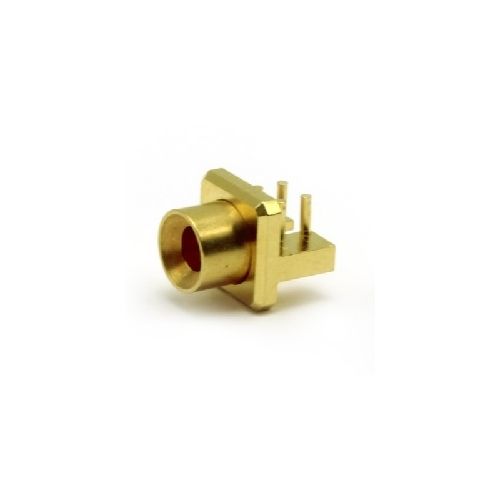

56-410-D3-XX | 56410D3XX | SMP End Launch PCB Mount Jack
SMP are a series of blind mate connectors for high frequency applications, and are ideal for use in high density arrays
| Complete Electronics Part No. | 56410D3XX |
|---|---|
| Manufacturers Part No. | 56-410-D3-XX |
| Male/Female: | Jack |
| Type | PCB Mounting |
| Impedance | 50 Ohm |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency: Up to 6GHz
- Dielectric W/V: 500 Veff
- Insulation: 5000 M Ohm
Mechanical Specification
- Design Standard:
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Solder
- Mating Cycles: 500
- Weight: 1.42g
- Operating Temperature: -55 to +155°C
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Beryllium Copper
- Insulator: PTFE
- PCB Mount Body: Brass
- Centre Contact Plating: Gold
- Outer Contact Plating: Gold
- PCB Mount Body Plating: Gold
