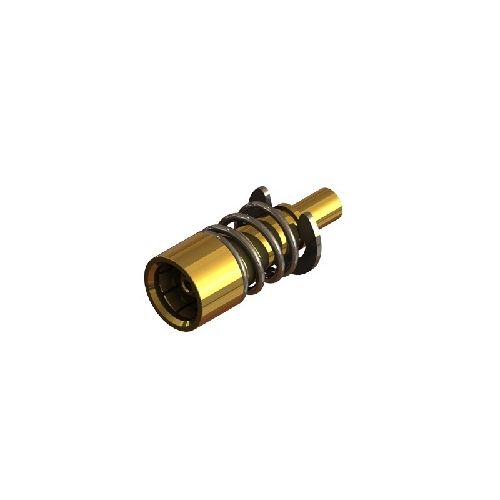

57-292-D3-HA | 57292D3HA | BMA EasyFit /Solder Bulkhead Jack
BMA EasyFit / solder Floating Front Mount Bulkhead Jack. Centre contact is push fit and body is soldered. For use with RG405 (0.085") and similar cables
| Complete Electronics Part No. | 57292D3HA |
|---|---|
| Manufacturers Part No. | 57-292-D3-HA |
| Male/Female: | Jack |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency: Up to 18GHz
- Dielectric W/V: 750 Veff
- Insulation: 5000 M Ohm
Mechanical Specification
- Design Standard: IEC 60169-15
- RoHS3 Compliant
- Centre Contact Termination: Easy Fit
- Outer Contact Termination: Solder
- Mating Cycles: 500
- Contact Retention: 27N min
- Cable Retention: 200N mim
- Weight: 2.03g
- Mating Force: 23N cm
- Un-Coupling Force: 23N cm
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP 54
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Beryllium Copper
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: Gold
- Pack Size: 1
