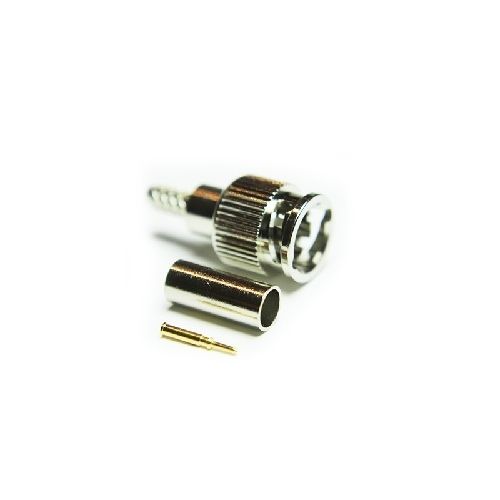

63-005-A0-AG | 63005A0AG | Mini BNC Crimp / Crimp Plug

Mini BNC 75 ohm full crimp straight plug. This plug has a gold plated crimp centre contact, For use with Mini RG59 (white) and similar cables in group AG.
More Information
Complete Electronics Part No. 63005A0AG
Manufacturers Part No. 63-005-A0-AG
Working Frequency Up To 6GHz
Description

Electrical Specification

  • Impedance 75 Ohm
  • Frequency Range Up to 2GHz
  • Dielectric Withstand Voltage 1000 Veff
  • Insulation Resistance 10000 M-Ohm

Mechanical Specification

  • RoHS3 Compliant
  • Centre Contact Termination: Crimp
  • Outer Contact Termination: Crimp
  • Mating Cycles: 500
  • Contact Retention: 10N min
  • Cable Retention: 50N min
  • Weight:
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated):  IP40

Materials

  • Centre Contact: Brass
  • Outer Contact:  Brass
  • Insulator:  PTFE
  • Bayonet Cap: Brass
  • Centre Contact Plating: Gold
  • Outer Contact Plating Nickel
  • Pack Size 1
