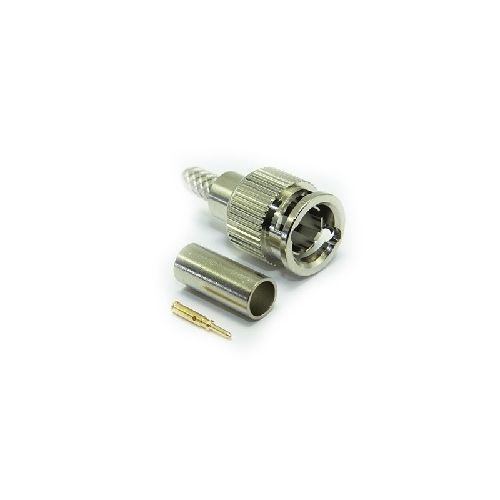

63-005-B6-BF | 63005B6BF | Mini BNC Crimp / Crimp Plug
Mini BNC 75 ohm full crimp straight plug. This plug has a gold plated crimp centre contact, For use with BT7000 and similar cables in group BF.
| Complete Electronics Part No. | 63005B6BF |
|---|---|
| Manufacturers Part No. | 63-005-B6-BF |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 2GHz
- Dielectric Withstand Voltage 1000 Veff
- Insulation Resistance 10000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 500
- Contact Retention: 10N min
- Cable Retention: 220N min
- Weight:
- Mating Force: 10N max
- Un-coupling Force: 10N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP40
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: PTFE
- Bayonet Cap: Brass
- Centre Contact Plating: Gold
- Outer Contact Plating Nickel
- Pack Size 1
