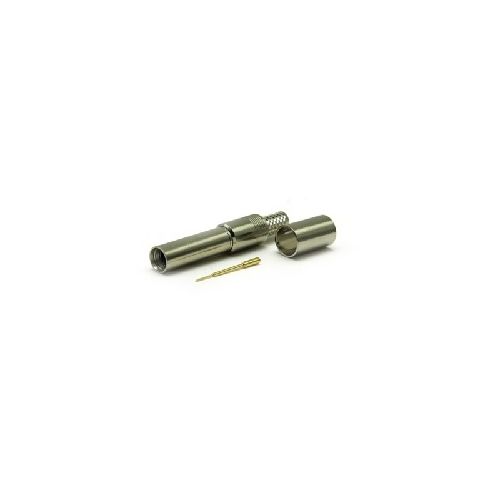

64-054-B126-EJ1 | 64054B126EJ1 | Crimp Jack
microMUSA 12G Crimp / Crimp Jack, Suitable for cable in group EJ. Impedance: 75 Ohm, Frequency Range: Up to 18GHz
| Complete Electronics Part No. | 64054B126EJ1 |
|---|---|
| Manufacturers Part No. | 64-054-B126-EJ1 |
Description
Electrical Specification
- Impedance: 75 Ohm
- Frequency Range: Up to 18GHz
- Dielectric Withstand Voltage 1000 Veff
- Insulation Resistance 10000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Mating Cycles: 5000
- Weight: 4.41g
- Mating Force: 10N Max
- Uncoupling Force: 25N Max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP30
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Phosphor Bronze
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
