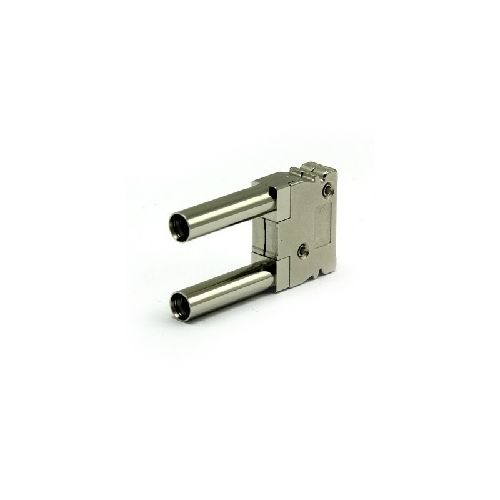

64-564-D126 | 64564D126 | 12G Link
microMUSA 12G Link, Impedance: 75 Ohm, Frequency Range: Up to 18GHz
| Complete Electronics Part No. | 64564D126 |
|---|---|
| Manufacturers Part No. | 64-564-D126 |
Description
Electrical Specification
- Impedance: 75 Ohm
- Frequency Range: Up to 18GHz
- Dielectric Withstand Voltage 1000 Veff
- Insulation Resistance 10000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Mating Cycles: 5000
- Weight: 21.63g
- Mating Force: 10N Max
- Uncoupling Force: 25N Max
- Operating Temperature: -30 to +70°C
- IP Rating (Mated): IP30
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Phosphor Bronze
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
