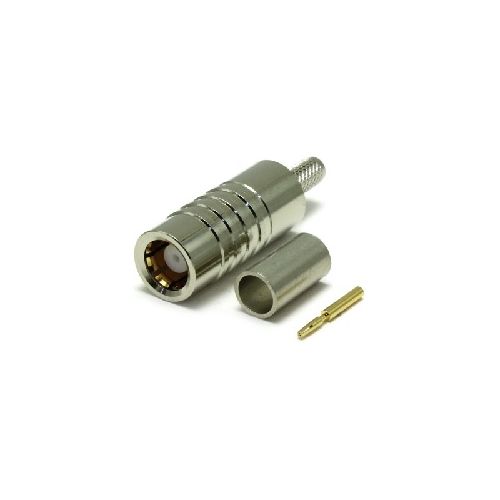

66-054-B6-BD | 66054B6BD | SSMZ Crimp/Crimp Socket
SSMZ (75 ohm SMB ) full crimp socket with push-pull sleeve for secure connection to a plug of 5.63mm dia. Suitable for BT3002 and similar cables in group BD.
| Complete Electronics Part No. | 66054B6BD |
|---|---|
| Manufacturers Part No. | 66-054-B6-BD |
| Male/Female: | Jack |
| Type | Straight |
| Impedance | 75 Ohm |
| Working Frequency | Up To 3 GHz |
Description
Electrical Specification
- Impedance: 75 Ohm
- Frequency: Up to 2GHz
- Dielectric W/V: 1500 Veff
- Insulation: 5000 M Ohm
Mechanical Specification
- Design Standard: BS9210F0022 (BT-RC8003)
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 250
- Contact Retention: 22N min
- Cable Retention: 220N mim
- Weight: 6.58g
- Mating Force: 23N cm
- Un-Coupling Force: 23N cm
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP 30
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Phosphor Bronze
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: Gold
- Pack Size: 1
