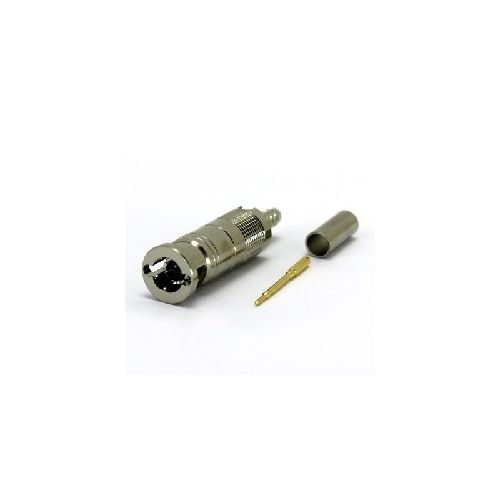

67-005-B3-AD | 67005B3AD | Micro BNC Straight Crimp Plug 50 ohm

Micro BNC 50 ohm straight crimp / crimp plug. With gold plated centre contact and annealed crimp zone, Suitable for all cables in group AD.
More Information
Complete Electronics Part No. 67005B3AD
Manufacturers Part No. 67-005-B3-AD
Working Frequency Up To 6GHz
Description

Electrical Specification

  • Impedance 50 Ohm
  • Frequency Range Up to 6GHz
  • Dielectric Withstand Voltage 1000 Veff
  • Insulation Resistance 10000 M-Ohm

Mechanical Specification

  • RoHS3 Compliant
  • Centre Contact Termination: Crimp
  • Outer Contact Termination: Crimp
  • Mating Cycles: 500
  • Contact Retention: 10N max
  • Cable Retention: 100N max
  • Weight: 5.63g
  • Mating Force: 10N min
  • Un-Coupling Force: 10N min
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated):  IP64

Materials

  • Centre Contact: Beryllium Copper
  • Outer Contact:  Brass
  • Insulator:  PTFE
  • Bayonet Cap: Brass
  • Gasket: Silicone
  • Centre Contact Plating: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
  •  Note : 50 and 75 Ohm versions of Micro BNC are not compatible and permanent damage to the connector may occur if mated.
