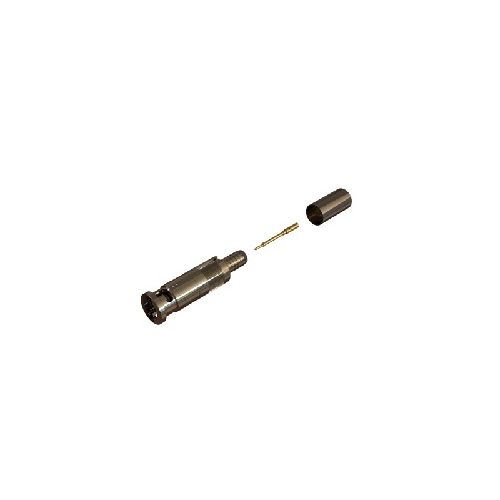

67-005-B3-AH | 67005B3AH | Micro BNC Straight Crimp Plug 50 ohm
Micro BNC 50 ohm straight crimp / crimp plug. With gold plated centre contact and annealed crimp zone, Suitable for all cables in group AH.
| Complete Electronics Part No. | 67005B3AH |
|---|---|
| Manufacturers Part No. | 67-005-B3-AH |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Impedance 50 Ohm
- Frequency Range Up to 6GHz
- Dielectric Withstand Voltage 1000 Veff
- Insulation Resistance 10000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 500
- Contact Retention: 10N min
- Cable Retention: 100N min
- Weight: 5.63g
- Mating Force: 10N max
- Un-Coupling Force: 10N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
