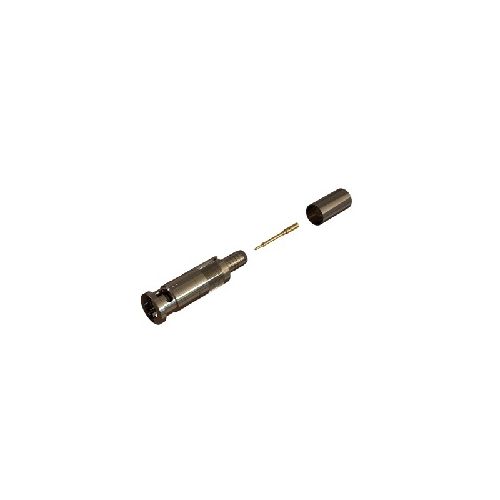

67-005-B3-HA | 67005B3HA | Micro BNC Solder Plug 50 ohm

Micro BNC 50 ohm straight Solder plug. With gold plated centre contact and annealed crimp zone, Suitable for all cables in group HA.
More Information
Complete Electronics Part No. 67005B3HA
Manufacturers Part No. 67-005-B3-HA
Working Frequency Up To 6GHz
Description

Electrical Specification

  • Impedance 50 Ohm
  • Frequency Range Up to 6GHz
  • Dielectric Withstand Voltage 1000 Veff
  • Insulation Resistance 10000 M-Ohm

Mechanical Specification

  • RoHS3 Compliant
  • Centre Contact Termination: Solder
  • Outer Contact Termination: Solder
  • Mating Cycles: 500
  • Contact Retention: 10N min
  • Cable Retention: 100N min
  • Weight: 5.63g
  • Mating Force: 10N max
  • Un-Coupling Force: 10N max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated):  IP64

Materials

  • Centre Contact: Beryllium Copper
  • Outer Contact:  Brass
  • Insulator:  PTFE
  • Bayonet Cap: Brass
  • Gasket: Silicone
  • Centre Contact Plating: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
  •  Note : 50 and 75 Ohm versions of Micro BNC are not compatible and permanent damage to the connector may occur if mated.
