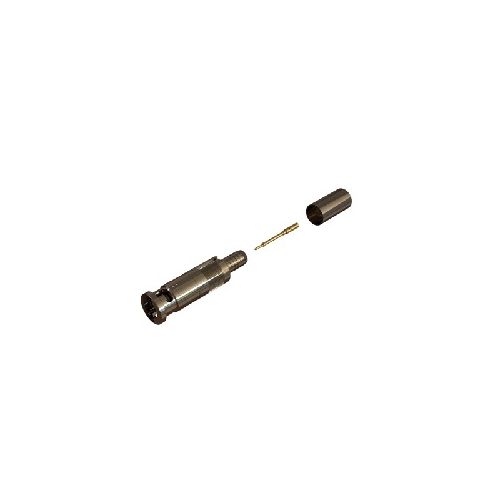

67-005-B66-FC | 67005B66FC | Micro BNC Straight Crimp Plug

Micro BNC True 75 ohm full crimp plug. 12GHz, Gold plated centre contact, Suitable for Belden 1694A cables and similar. ** Now Tested To 18GHz **
More Information
Complete Electronics Part No. 67005B66FC
Manufacturers Part No. 67-005-B66-FC
Male/Female: Plug
Type Straight
Working Frequency Ultra HD (12GHz +)
Description

Electrical Specification

  • Impedance 75 Ohm
  • Frequency Range Up to 12GHz
  • Dielectric Withstand Voltage 1000 Veff
  • Insulation Resistance 10000 M-Ohm
  • Return Loss: -25dB@12GHz

Mechanical Specification

  • RoHS3 Compliant
  • Centre Contact Termination: Crimp
  • Outer Contact Termination: Crimp
  • Mating Cycles: 500
  • Contact Retention: 10N min
  • Cable Retention: 100N min
  • Weight: 7.58g
  • Mating Force: 10N max
  • Un-coupling Force: 10N max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated):  IP64

Materials

  • Centre Contact: Beryllium Copper
  • Outer Contact:  Brass
  • Insulator:  PTFE
  • Bayonet Cap: Brass
  • Gasket: Silicone
  • Centre Contact Plating: Gold
  • Outer Contact Plating Nickel
  • Pack Size 100
