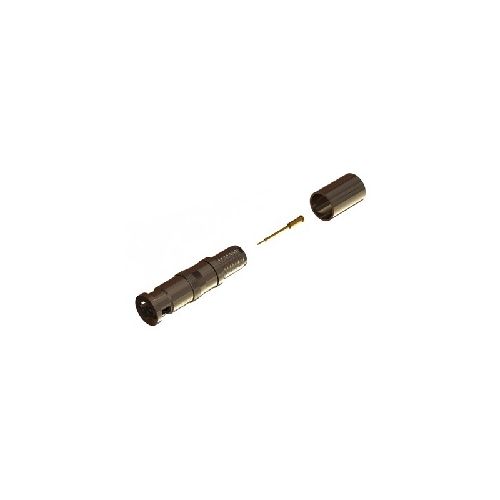

67-005-B66-FI | 67005B66FI | Micro BNC Straight Crimp Plug
Micro BNC True 75 ohm full crimp plug. 12GHz, Suitable for Belden 1694A cables and similar cables.in group FI
| Complete Electronics Part No. | 67005B66FI |
|---|---|
| Manufacturers Part No. | 67-005-B66-FI |
| Male/Female: | Plug |
| Type | Straight |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 12GHz
- Dielectric Withstand Voltage 1000 Veff
- Insulation Resistance 10000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 500
- Contact Retention: 10N min
- Cable Retention: 100N min
- Weight: 7.42g
- Mating Force: 10N max
- Un-coupling Force: 10N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Bayonet Cap: Brass
- Gasket: Silicone
- Centre Contact Plating: Gold
- Outer Contact Plating Nickel
- Pack Size 1
