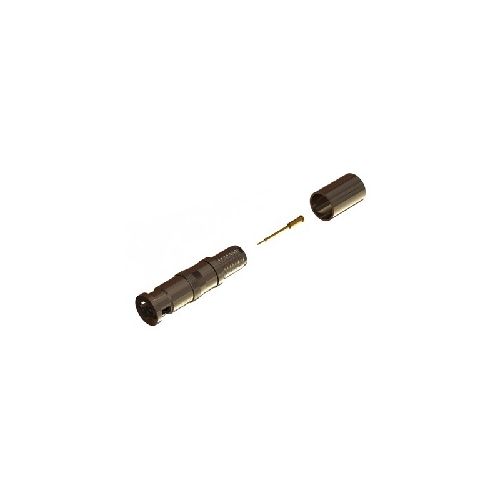

67-005-B66-FJ1 | 67005B66FJ1 | Micro BNC Straight Crimp Plug

Micro BNC True 75 ohm full crimp plug. 12GHz, Suitable for Belden 1694A cables and similar cables.in group FJ
More Information
Complete Electronics Part No. 67005B66FJ1
Manufacturers Part No. 67-005-B66-FJ1
Male/Female: Plug
Type Straight
Working Frequency Ultra HD (12GHz +)
Description

Electrical Specification

  • Impedance 75 Ohm
  • Frequency Range Up to 12GHz
  • Dielectric Withstand Voltage 1000 Veff
  • Insulation Resistance 10000 M-Ohm

Mechanical Specification

  • RoHS3 Compliant
  • Centre Contact Termination: Crimp
  • Outer Contact Termination: Crimp
  • Mating Cycles: 500
  • Contact Retention: 10N min
  • Cable Retention: 100N min
  • Weight: 9.85g
  • Mating Force: 10N max
  • Un-coupling Force: 10N max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated):  IP64

Materials

  • Centre Contact: Beryllium Copper
  • Outer Contact:  Brass
  • Insulator:  PTFE
  • Bayonet Cap: Brass
  • Gasket: Silicone
  • Centre Contact Plating: Gold
  • Outer Contact Plating Nickel
  • Pack Size 1
