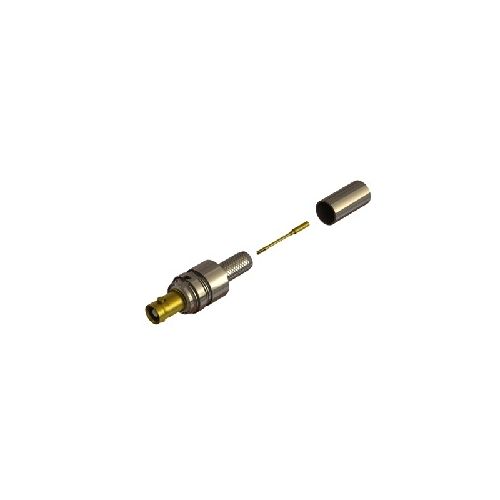

67-258-D126-EF1 | 67258D126EF1 | Micro BNC Insulated Bulkhead Jack
Micro BNC 75 ohm Insulated Metal thread Bulkhead Crimp/Crimp Jack ** Now Tested To 18GHz **
| Complete Electronics Part No. | 67258D126EF1 |
|---|---|
| Manufacturers Part No. | 67-258-D126-EF1 |
| Male/Female: | Jack |
| Type | Panel / Bulkhead Mount |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 12GHz
- Dielectric Withstand Voltage 1000 Veff
- Insulation Resistance 10000 M-Ohm
- Return Loss: -18dB@12Ghz
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 500
- Contact Retention: 10N min
- Cable Retention: 100N min
- Weight: 4.64g
- Mating Force: 10N max
- Un-coupling Force: 10N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- M8 Nut Plating: Nickel
- M8 Bulkhead Plating: Nickel
- Centre Contact Plating: Gold
- Outer Contact Plating Gold
- Pack Size 1
