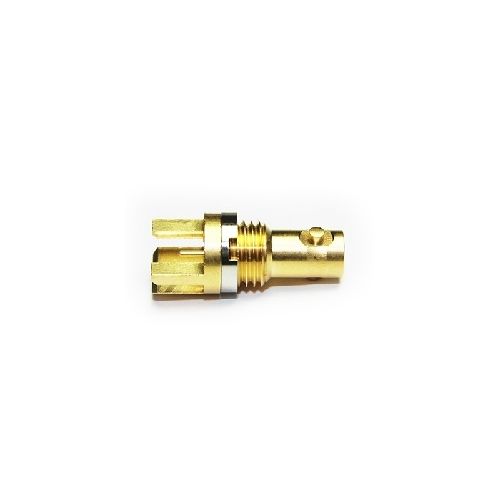

67-463-D66 1.6mm | 67463D661.6mm | Micro BNC PCB Mount Jack
Micro BNC True 75 ohm end launch Bulkhead jack for 1.6mm PCB, Designed for HD & UHD Broadcast, Telecom, HDcctv **Tested to 18GHz**
| Complete Electronics Part No. | 67463D661.6mm |
|---|---|
| Manufacturers Part No. | 67-463-D66 1.6mm |
| Male/Female: | Jack |
| Type | PCB Mounting |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 12GHz
- Dielectric Withstand Voltage 1000 Veff
- Insulation Resistance 10000 M-Ohm
- Return Loss: -13dB@12GHz
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Solder
- Mating Cycles: 500
- Contact Retention: 10N min
- Weight:
- Mating Force: 10N max
- Un-coupling Force: 10N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating Gold
- Pack Size 1
