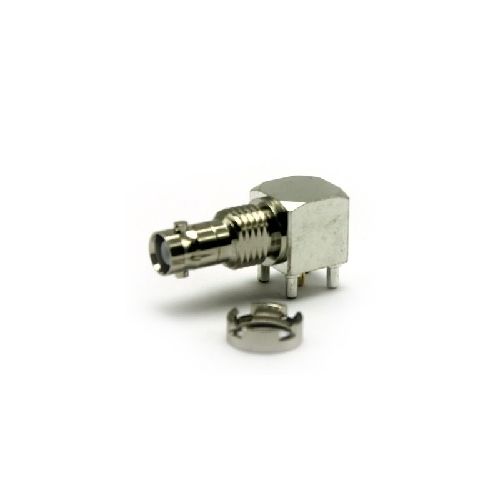

67-468-B3 | 67468B3 | Micro BNC R/A Bulkhead PCB Jack

50 ohm Micro BNC PCB Mount Bulkhead jack. Right angle mount to PCB with through hole solder fixing. Centre contact is gold plated
More Information
Complete Electronics Part No. 67468B3
Manufacturers Part No. 67-468-B3
Type PCB Mounting
Working Frequency Up To 6GHz
Description

Electrical Specification

  • Impedance 50 Ohm
  • Frequency Range Up to 6GHz
  • Dielectric Withstand Voltage 1000 Veff
  • Insulation Resistance 10000 M-Ohm

Mechanical Specification

  • RoHS3 Compliant
  • Outer Contact Termination: Solder
  • Mating Cycles: 500
  • Contact Retention: 20N min
  • Weight: 4.91g
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated):  IP64

Materials

  • Centre Contact: Beryllium Copper
  • Outer Contact:  Brass
  • Insulator:  PTFE
  • Pack Size 1
  •  Note : 50 and 75 Ohm versions of Micro BNC are not compatible and permanent damage to the connector may occur if mated.
