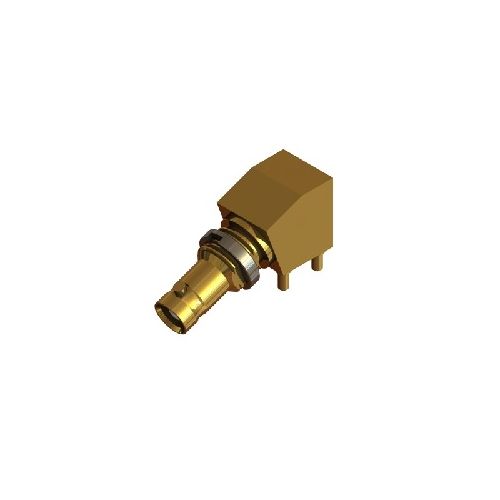

67-492-D66 | 67492D66 | Micro BNC PCB Jack R/A
Micro BNC 75 ohm 98 deg PCB bulkhead jack. based on a Right Angle but 8 deg from the horizontal, gold plated inner and outer contacts.
| Complete Electronics Part No. | 67492D66 |
|---|---|
| Manufacturers Part No. | 67-492-D66 |
| Male/Female: | Jack |
| Type | PCB Mounting |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 6GHz
- Dielectric Withstand Voltage 1000 Veff
- Insulation Resistance 10000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Solder
- Mating Cycles: 500
- Contact Retention: 10N min
- Weight: 5.79g
- Mating Force: 10N max
- Un-coupling Force: 10N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating Gold
- Pack Size 1
